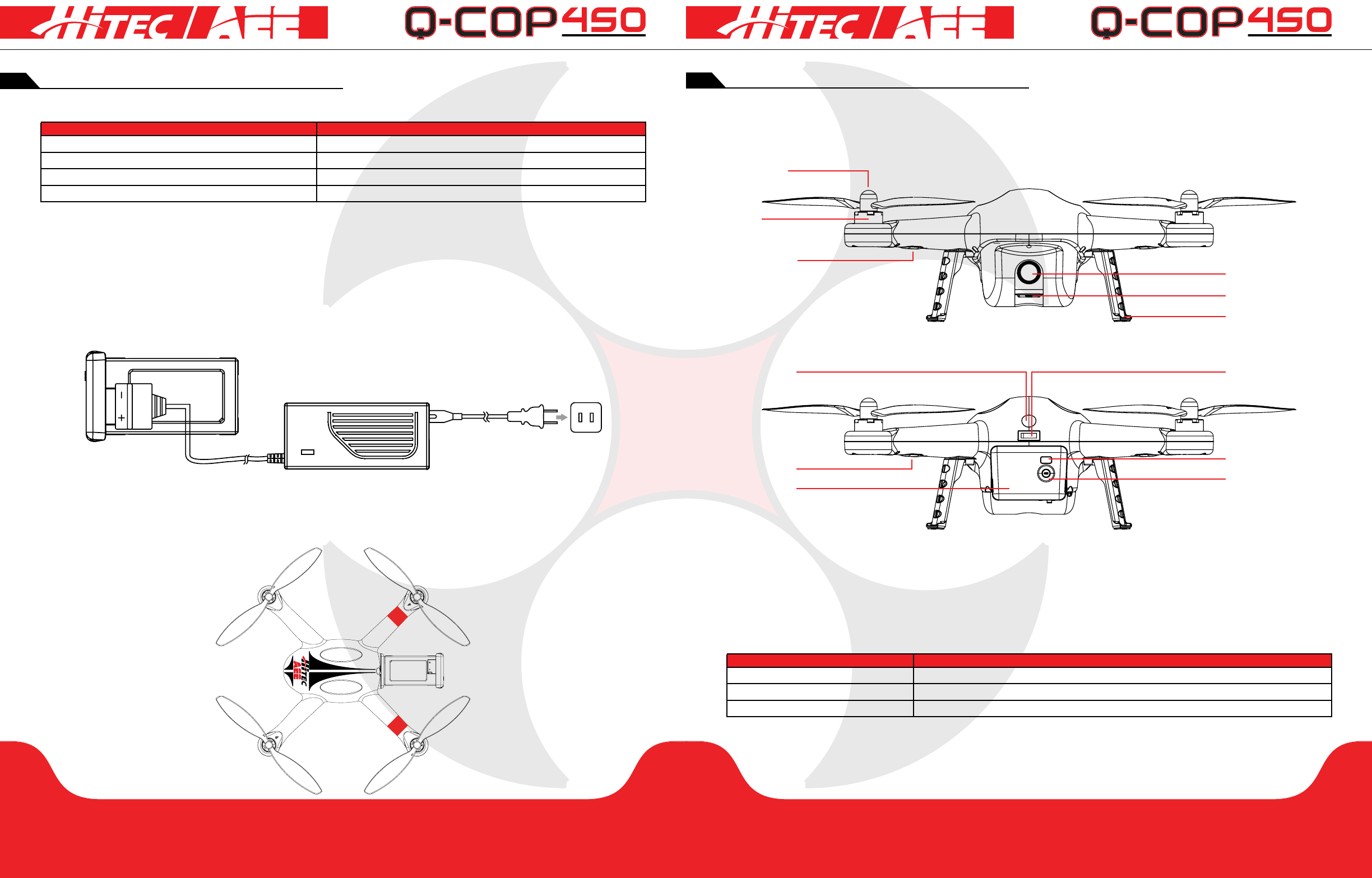

The quadcopter includes the ight control system and an airborne camera that are convenient to use.

quadcopter battery

quadcopter preparation

Battery Specications:

Type Li-Po Battery

Capacity

Charging Ambient Temperatures

Discharging Ambient Temperatures

Charging/Discharging Ambient Relative Humidity

5300mAh

0°C to 50°C

-20°C to 50°C

< 80%

Before using the battery, please carefully read and strictly comply with this manual’s instructions. Any problems

caused due to failure to follow instructions will be the responsibility of the user.

Charging the Quadcopter Battery:

1. Connect the charger to an AC power source (110-240V, 50 / 60Hz). If necessary, please use a power adapter.

2. While charging, the battery charger indicator lights up, and turns red.

3. When the battery indicator turns green, it means the battery is fully charged. Please remove the battery and

disconnect the charger cable from the socket once the battery is completely charged. Do not leave the battery

plugged in to the charger for long periods of time after the light has turned green.

Figure 5

Installing the Quadcopter Battery:

Push the battery in the correct direction (Figure 6) into the quadcopter’s battery compartment and ensure

the battery is properly installed before fastening the battery lock. If the battery lock is not fastened before the

ight, it may cause poor contact with the battery which may affect ight safety or even cause the quadcopter

to fail to take off.

Figure 6

Functions

Master Controller

GPS & Compass

Indicators

Core of ight control system. Connects all modules and plays the role of centralized control.

Used for positioning and navigating the quadcopter.

Indicates current status of ight control system. Used to navigate during night ying.

Flight Control System Component Modules

Flight Control System:

The Q-Cop 450 is designed with an AEE ight control system, which is easy to operate and provides stability.

In addition to supporting basic ight maneuvers such as climb, descend, roll and pitch, it also supports failsafe

protection, battery alarm levels, smart direction control and other functions.

Rotor Blades

Camera Lens

Micro SD

Card Slot

Undercarriage

Motor

Front Indicator

Power Switch

Battery Level Display

Battery Level

Check Button

Quadcopter

Batteries

Rear Indicator

Tail Indicator
